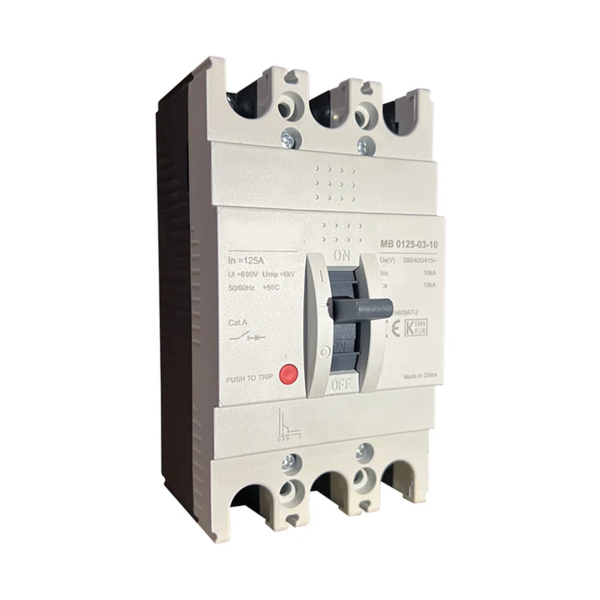

125A 3P MCCB – Moulded Case Circuit Breaker

The 125A 3P MCCB – Moulded Case Circuit Breaker is a high-performance 3-pole Moulded Case Circuit Breaker (MCCB) designed for dependable protection of electrical circuits against overloads and short circuits. With a rated current of 125A and voltage capacity of up to 690V, this MCCB is ideal for industrial, commercial, and large-scale residential electrical systems. It features a clear ON/OFF toggle mechanism, a red push-to-trip button for manual testing, and a rugged casing built to withstand demanding environments. Compliant with IEC standards and built for durability, this breaker ensures both safety and reliability in power distribution.

Applications:

Industrial Control Panels | Protect large equipment and switchgear from power faults.
Commercial Buildings | Ensures safe distribution in malls, warehouses, and offices.
Generators & Backup Systems | Used in incoming or outgoing protection circuits.
Main Distribution Boards (MDBs) | Acts as a main switch in complex setups.
Manufacturing Units | Secures machines against electrical overload or short circuit.
Large Residential Buildings | Suitable for main or sub-main supply protection.

Rated Current (In): 125A – Suitable for medium to heavy-duty circuits
Rated Operational Voltage (Ue): 380/400/415V AC – Standard for 3-phase systems
Rated Insulation Voltage (Ui): 690V – High insulation level
Rated Impulse Voltage (Uimp): 6kV – Withstands transient surges
Frequency: 50/60Hz – Universal frequency compatibility
Operating Temperature: Up to +50°C – For demanding environments
Breaking Capacity (Icu/Ics): 10kA – Reliable short-circuit protection
Poles: 3P – Three-phase protection
Control: Toggle switch with ON/OFF indication and test trip button
Compliance: Built to IEC 60947-2 standards –
Globally recognized safety compliance
Certifications: CE, KEMA, EAC approved
